Grease Guardian

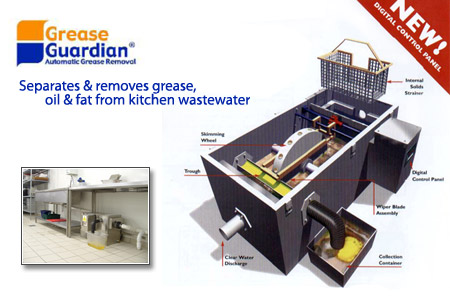

Stage 1 Solids Collection

Wastewater from kitchen is directed through the inlet pipe where a removable strainer basket collects any solid debris. The top lid has a special hinged section for easy access to empty the basket.

Stage 2 Grease and Oil Separation

The wastewater containing free-floating grease and oils enters the retention chamber. The lighter grease and oils immediately rise to the surface and remian trapped. The water portion of the flow exits by displacement under the outlet baffle to final discharge.


Stage 3 Self Cleaning & Grease Removal

A heating system located in the retention chamber is activated by a timer mechanism set to suit each individual kitchen. A motor operated skimming wheel collects the melted surface materials and transfers them to the outlet pipe using a wiper blade assembly. The skimmed grease and oils flow through the pipe to a collection container supplied with the system.





Electronic time with audio alarm and backup battery



Grease Guardian Specification

All units comply with the Health, Safety & Electrical requirements of the Low Voltage Directive and carry the "CE" mark.
Casing Material : 16 Gauge; 304 Stainless Steel; Bright Finish.
IP65 Panel : 25 w motor - 1.5 kw heater, 230v, 50Hz, Thermally Protected, 1.3 µF Capacitor.
Skimming Rate : Each wheel is capable of skimming 12kg/hr of grease / oil. An extra wheel can be included for heavier grease.
eg. D1-2 (2 wheels) D1-3 (3 wheels)

OPTION: Remote Monitoring

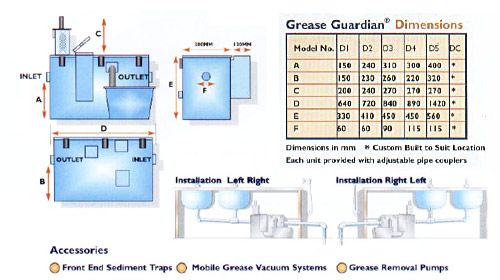

Model No. D1 D2 D3 D4 D5
Nominal Hydraulic Flow (liter per second) 0.75 1.25 1.75 2.25 3.5
Basket Stariner Capacity (liters) 2.5 4.4 8.0 10.0 10.0

For sizing advice, please consult your local distributor.
